gridpack::powerflow::PFSolverHelper Struct Reference

#include <pf_helper.hpp>

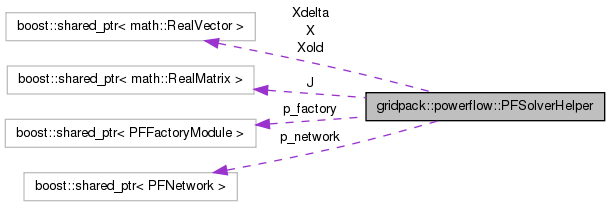

Collaboration diagram for gridpack::powerflow::PFSolverHelper:

[legend]

List of all members.

Public Member Functions
	PFSolverHelper (boost::shared_ptr< PFFactoryModule > factory, boost::shared_ptr< PFNetwork > network)
void	update (const math::RealVector &Xcur)
void	operator() (const math::RealVector &Xcur, math::RealMatrix &theJ)
void	operator() (const math::RealVector &Xcur, math::RealVector &PQ)
Public Attributes
boost::shared_ptr < PFFactoryModule >	p_factory
boost::shared_ptr< PFNetwork >	p_network
boost::shared_ptr < math::RealMatrix >	J
boost::shared_ptr < math::RealVector >	Xold
boost::shared_ptr < math::RealVector >	X
boost::shared_ptr < math::RealVector >	Xdelta

---

Detailed Description

A helper functor for the powerflow solver. This is a utility functor that provides functions that build the Jacobian and RHS from the network.

---

Constructor & Destructor Documentation

gridpack::powerflow::PFSolverHelper::PFSolverHelper	(	boost::shared_ptr< PFFactoryModule >	factory,
		boost::shared_ptr< PFNetwork >	network
	)

Constructor The current network state is gathered from the network.

Parameters:

	factory	powerflow factory
	network	network controlled by factory

Returns:

References J, gridpack::powerflow::Jacobian, gridpack::mapper::FullMatrixMap< _network >::mapToRealMatrix(), gridpack::mapper::BusVectorMap< _network >::mapToRealVector(), p_factory, p_network, gridpack::powerflow::State, X, Xdelta, and Xold.

---

Member Function Documentation

void gridpack::powerflow::PFSolverHelper::operator()	(	const math::RealVector &	Xcur,
		math::RealVector &	PQ
	)

Build the RHS function vector. This is called by the nonlinear solver each iteration to build the RHS vector from the current network state. This is also responsible for updating the network state with the current solution estimate, which assumes that it is called only once per solver iteration. This may not be true if certain methods are used or if a finite difference Jacobian is computed by the solver.

Parameters:

	Xcur	current state estimate
	PQ	computed RHS vector

References gridpack::mapper::BusVectorMap< _network >::mapToRealVector(), p_factory, p_network, gridpack::powerflow::RHS, and update().

void gridpack::powerflow::PFSolverHelper::operator()	(	const math::RealVector &	Xcur,
		math::RealMatrix &	theJ
	)

Build the Jacobian Matrix. This is called by the nonlinear solver each iteration to build the Jacobian from the current network state.

Parameters:

	Xcur	current state estimate
	J	Jacobian

References gridpack::powerflow::Jacobian, gridpack::mapper::FullMatrixMap< _network >::mapToRealMatrix(), p_factory, and p_network.

void gridpack::powerflow::PFSolverHelper::update

(

const math::RealVector &

Xcur

)

Push the current estimated state back onto the network. The network state (voltage, phase) is updated with the current estimate from the nonlinear solver.

FIXME: The problem here is that ...mapToBus expects the CHANGE (old - current)? in state variables. IMHO, there should be a way to set the state variables directly. The solver should be responsible for making the entire estimate.

Parameters:

Xcur

current state estimate from the solver

References gridpack::mapper::BusVectorMap< _network >::mapToBus(), p_factory, p_network, gridpack::powerflow::RHS, Xdelta, and Xold.

---

Member Data Documentation

boost::shared_ptr<math::RealMatrix> gridpack::powerflow::PFSolverHelper::J

boost::shared_ptr<PFFactoryModule> gridpack::powerflow::PFSolverHelper::p_factory

boost::shared_ptr<PFNetwork> gridpack::powerflow::PFSolverHelper::p_network

boost::shared_ptr<math::RealVector> gridpack::powerflow::PFSolverHelper::X

The current network state estimate. This vector provides a space for the nonlinear solve to store the current solution estimate. It should be filled with the initial condition, handed to the nonlinear solver, and not changed afterward.

boost::shared_ptr<math::RealVector> gridpack::powerflow::PFSolverHelper::Xdelta

The difference between the current and previous estimate. See update() for why this is necessary.

boost::shared_ptr<math::RealVector> gridpack::powerflow::PFSolverHelper::Xold

See update() for why this is necessary.

---

The documentation for this struct was generated from the following file:

• pf_helper.hpp
